XCruiser XH240 H-H DiSEqC Motor 50mm

$169.00 $139.00

Add to Wishlist
Add to Wishlist
Buyer protection
Safe shopping
Easy returns and refunds
Free shipping worldwide

This is a good H-H motor to motorize your Ku-Band offset dish. It is designed to drive Ku-Band dishes up to 1.2m at a high speed using the DiSEqC 1.2 or USALS communication protocols and is compatible with all modern digital receivers.

Use it to track Ku-Band satellites from SAT15W to SAT125W and receive hundreds of ethnics channels, HD network broadcasts/feeds and many other programs.


  • Compatible with all DiSEqC receivers
  • Go to
  • High speed and precise
  • 100 positions
  • Manual Control East-West Button
  • Easy to install with LED indicator


  • XH240 H-H Motor
  • Mounting Brackets
  • Nuts and Bolts


Specification Technical Value
Operating Protocol DiSEqC1.2 and USALs
Programmable Positions 100
Maximum Dish Size 120cm
Maximum Dish Weight 18kg (40lbs)
Pole Support Diameter 2″ to 3.3″ (5cm to 8.3cm)
Dish Support Diameter 2.1″ (5.4cm)
Speed 3.2° per sec
Azimuth Angle 160°
Elevation Angle 5° to 75°
Calibration Function Yes
Mechanical Limits Yes
Software Limits Yes
Fine Tuning Yes
Power 6.3W Max, 0.4W Standy-by
Operating Temperature -40°C to 60°C
Shipping Details
Single Box 14″x7″x5″ Rectangular (9 lbs)

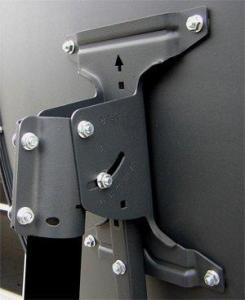

NOTE:  Shaft of this motor is 50mm diameter.  So it will only work with dishes that have a bracket with 50mm inside diameter, or with dishes that have U bolts of 2″ (50mm) opening or bigger.   Normal KU band dishes with 1.66″ inch (40mm) brackets will not fit on this motor.  The below examples of dishes and brackets will NOT fit on this motor.  Please be aware and don’t waste your time ordering this motor if your dish looks like the below.  If you order this motor by mistake, you can return it in new un-opened condition subject to our return policy and 20% restocking fee (S/H non refundable).


We have alternative motors for these type of dishes up to 90cm in diameter.  Check out the STAB HH90.

Weight: 8 lbs
Dimensions: 12 × 12 × 6 in
