Medical Digital Finger Pulse Oximeter Blood Oxygen Heart Rate Meter SPO2 De Pulso Dedo Saturation PI
Description
What is PI?
PI refers to the Perfusion Index (PI), and the PI value reflects the pulsatile blood flow, which reflects the blood perfusion ability. The larger the pulsating blood flow, the more the pulsating component, and the larger the PI value. Therefore, the measurement site (skin, nail, bone, etc.) and the patient’s own perfusion (arterial blood flow) will affect the PI value. Since the sympathetic nerves affect heart rate and arterial blood pressure (affecting pulse arterial blood flow), the neuromodulation system or mental state of the human body also indirectly affects the PI value. Therefore, the PI value will be different under different anesthesia conditions.
Description:
The pulse oximeter is based on all digital technology, intended for noninvasive spot-check measurement of functional oxygen saturation of arterial hemoglobin(Sp02). Advanced algorithm can minish the influence of motion artifact and improve measurement accuracy of low perfusion. It can be used to measure human hemoglobin saturation and heart rate through finger. It is widely used in hospital, home healthcare, oxygen bar, community medical centre,
alpine area, sports healthcare, etc.
Features:
1. Based on all digital technology, intended for noninvasive spot-check measurement of functional oxygen saturation of arterial hemoglobin(Sp02).
2. When monitoring blood oxygenation rate, the perfusion index can also be monitored simultaneously.
3. LCD HD display, high brightness with backlight, easy to read the data.
4. Silicone fingerprint, soft and comfortable, will not oppress the tip of the finger.
5. High performance, more accurate measurement. Manually adjust the direction of interface.
6. Low power consumption, low batteries voltage indicator. Lightweight for carrying and easy to use.

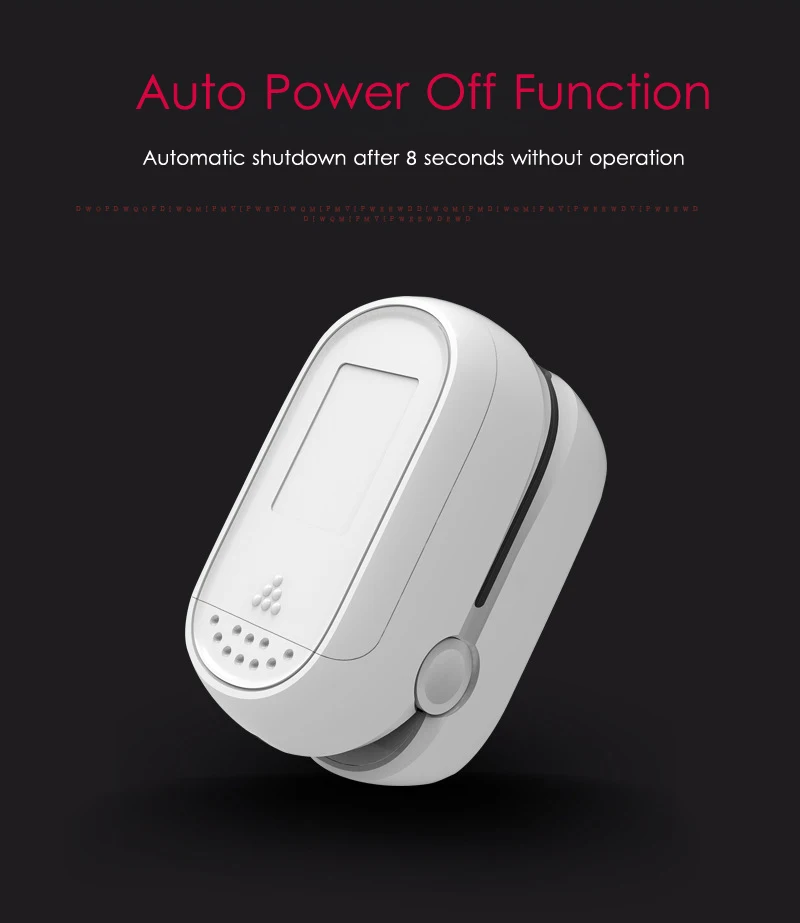

7. Intelligent shutdown, it will automatically enter shutdown state after 8 seconds without finger in.
8. Widely used in hospital, home healthcare, oxygen bar, community medical centre, alpine area, sports healthcare, etc.
Specification:
Item Type: Fingertip Pulse Oximeter
Material: ABS
Color: As Pictures Show
Battery Type: 2 * AAA Batteries( Not Included )
Display: LCD Display
Sp02:
Measurement Range: 70%-99%
Accuracy: ±2% On the Stage of 70%-99%, Unspecified(≤70%)
Resolution: ±1%
PR:
Measurement Range: 30BPM-240BPM
Accuracy: ±1BPM Or ±1%
Operating Temperature: 5℃-40℃
Storage Temperature: -10℃-40℃
Operating Humidity: 15%-80%
Storage Humidity: 10%-80%
Air Pressure: 70kPa~106kPa
Item Size: 6.2 * 3.3 * 3.5cm / 2.4 * 1.3 * 1.4inch
Package Weight: Approx. 64g
Package List:
1 * Fingertip Pulse Oximeter
1 * Hanging Rope
1 * Manual
Note:
1. Please read the manual carefully before use.
2. Use 75% density of medical alcohol to clean the machine surface. Use dry fabric with a little alcohol to avoid alcohol permeates into the device.
3. Please allow 1-3 cm error due to the manual measurement. Thanks for your understanding.
How to use it:
Step 1
Turn on the pulse oximeter by firmly pressing the power button. The screen should light up almost instantly.
Step 2
Place the sensor — the part that opens and closes like a clothespin — on any finger, with the sensor screen above the fingernail. If the sensor doesn’t have a screen, run the cable along the back of the finger or hand. Don’t use the thumb because readings are less reliable than finger readings.
Step 3
Wait quietly while the pulse oximeter acquires a signal. This may take 10 seconds or more, depending on the device and the conditions. Excessive movement during measurement can decrease the accuracy of the result or may cause an error message.
Step 4
Look at the display to see the heart rate, usually indicated with a heart or pulsing light. The percent of oxygen saturation is typically indicated by the symbol “SpO2.” Many devices also have a pulse tone that beeps in time with the heart rate.
Step 5
Leave the sensor on for continuous monitoring. The sensor can become uncomfortable or cause pressure sores if left on the finger too long. Check and/or move the sensor at least every two to four hours. If only a single measurement is required, remove the sensor and press the power button to turn off the device.
Tips:
To ensure proper function, read the manual for your specific pulse oximeter.
Remove nail polish, especially dark colors, before placing the sensor on the finger.
Place the sensor on the finger before turning on the pulse oximeter for a faster result.
Pulse oximeters are less accurate if there is poor blood flow to the finger. This may occur if the person is cold, has very low blood pressure or is having a heart attack.
Carbon monoxide — due to smoke inhalation, carbon monoxide poisoning or heavy cigarette smoking — results in falsely high pulse oximeter readings.
Altitude may result in lower percent oxygen saturation due to the lower oxygen pressure in the air, particularly if you have recently arrived.
Warning
A normal percent oxygen saturation reading is in the 95 to 100 percent range. In the event of a low oxygen saturation measurement, look for signs of respiratory distress. This includes shortness of breath, wheezing, difficulty breathing or a bluish discoloration of the face, lips or fingernails.
Seek medical attention right away if the respiratory distress is a new or uncomfortable symptom. if it’s getting worse or if the pulse oximeter measurement is below 90 percent.
Additional information
| Commodity Quality Certification | ce |
|---|---|
| Material | ABS |
| Model Number | ZXX0326XYY |
| Item Type | Blood Pressure |
| Application | Finger |
| Two parameters | SPo2, Pulse Rate |
| Parameter | SPO2,PR,PI |
| item | Blood Pressure |
| Size | 6.5*3.3*3.5cm |
| Display type | LED Display |
| Feature | pulse oximeter |
| Feature 1 | pulsoximeter |
| Feature 2 | pulse oximeter finger |
| Feature 3 | digital finger pulse oximeter |
| Feature 4 | fingertip pulse oximeter |
