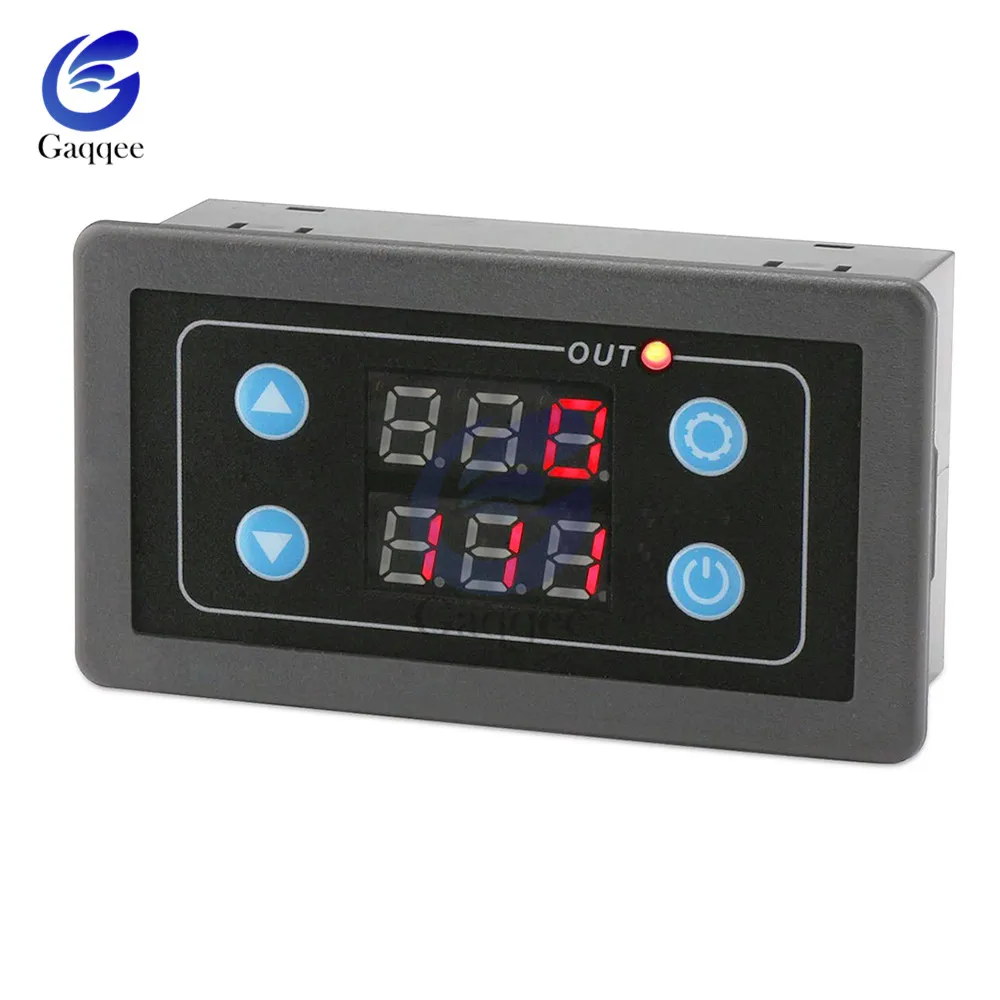

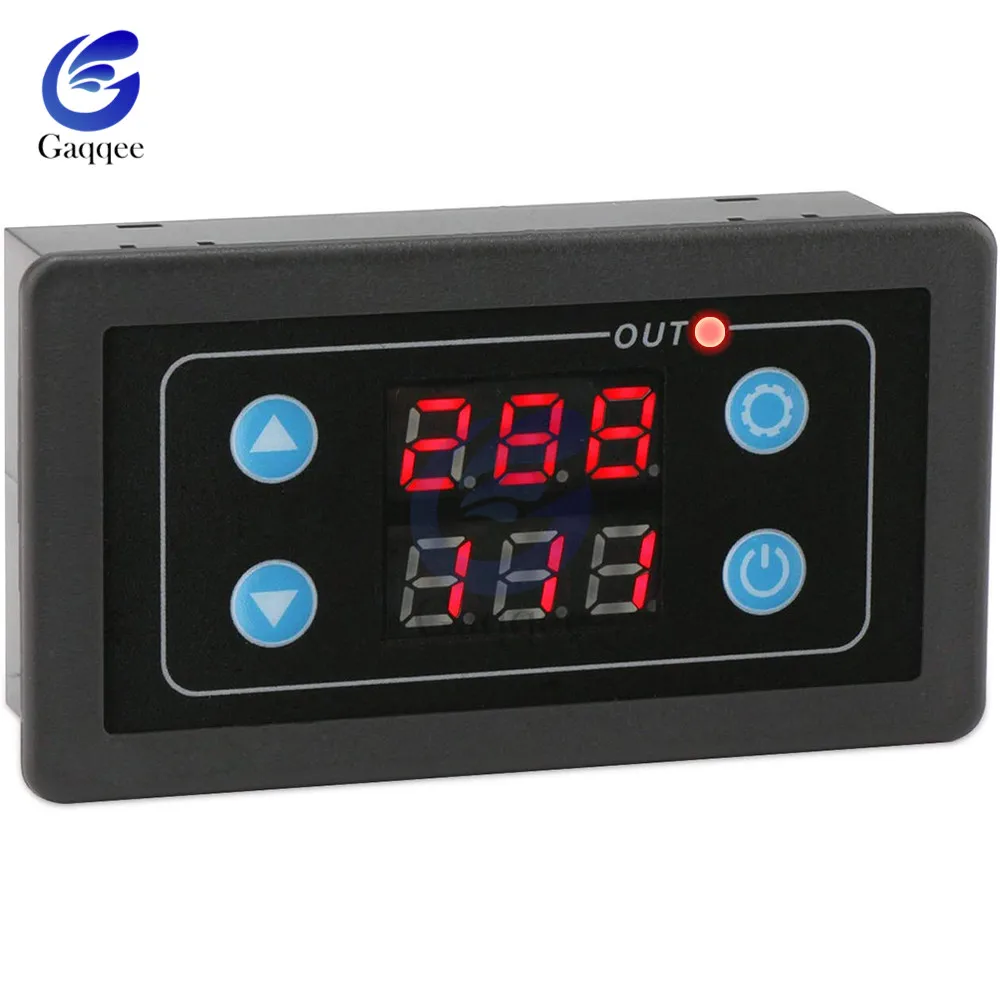

Digital LED Display Timer Delay Relay Switch Panel DC 5V/12V/24V AC 220V/85-265V Adjustable Cycle ON-OFF Control Module
Description
Feature:
Dual digital tube display, allowing to timing 2 groups of time data, which is convenient for customer to use.
Timing range includes 0.1s, seconds, minutes and hours, available for all kinds of timing occasions, different timing range can be set by pressing buttons.
Our digital display time relay has the function of timing, delay and cycle; four function buttons on this meter: + key, – key, Setting key, OK key，users can make adjustment with the buttons.
The digital time relay can dynamically display working hours, users can check the status of work at any time.
With self-memory function, it will store user’s setting data to prevent from losing when power off suddenly.
Specification:
Timing range: 0-999ms, 0-999s, 0-999m, 0-999h
Input voltage: 5V / 12V / 24V / AC 220V / AC 85-265V (Optional)
Power dissipation: <0.6W
Maximum power: < 2000W
Maximum current: 10A
Working Temperature: -40-85°C
Dimension: 71mm*39mm*25mm
Application:
1: Used for timing, delay, cycle timing, intermittent timing and other occasions
2: Used for raft fishing machine, slow-down machine
3: Used for timer switch, timer alarm control panel
Setting:
Long press the setting key to enter the parameter setting mode. There are three sets of parameters for the users to set P0, P1, P2.
P0: Timing range; P1: Working mode; P2: Display brightness adjustment. P0, P1, P2 can be switched by short pressing the setting key. The corresponding parameters can be set by increasing or decreasing under the corresponding parameters.
P0–0: Timing range is 0.1 second;
P0–1: Timing range is seconds;
P0–2: Timing range is minutes;
P0–3: Timing range is hour;
P1–0: After delay T1 time, the relay is sucked in (T1 timing);
P1–1: After delay T1 time, the relay is released (T1 timing);
P1–2: After delay T1 time, the relay is sucked in (T1 timing), and then the relay is released after T2 time (T2 timing), and ends;
P1–3: After delay T1 time, the relay is released (T1 timing), and then the relay is sucked in after T2 time (T2 timing), and ends;
P1–4: After delay T1 time, the relay is sucked in (T1 timing), and then the relay is released after T2 time (T2 timing), and the cycle is repeated;
P1–5: After delay T1 time, the relay is released (T1 timing), and then the relay is sucked in after T2 time (T2 timing), and the cycle is repeated;
P2–0 to P2–5: Display brightness adjustment, which can be set by the user according to the comfort level;
P2–OFF: In low power mode, the user sets P2 to OFF mode. The system will automatically turn off the display after 10s, enter the low power mode, and press any button to wake up.
For example:
A customer needs 10 seconds to start up, 20 seconds to shut down, and cycle. The setting method is as follows:
T1 sets time 10, T2 sets time 20
P0-1 (T1 timing range is seconds)
P1—5 (timer working mode is to work first and then stop and cycle)
Package Included:
1 * Digital Cycle Delay Timer Relay
Additional information
| Brand Name | Gaqqee |
|---|---|
| DIY Supplies | Electrical |
| Model Number | DC 5V/12V/24V AC 220V/85-265V |
Reviews (0)
Be the first to review “Digital LED Display Timer Delay Relay Switch Panel DC 5V/12V/24V AC 220V/85-265V Adjustable Cycle ON-OFF Control Module”
